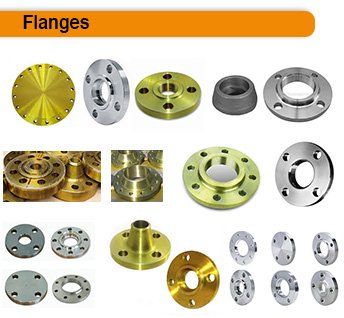

FLANGES (Bridas)
FLANGES
WELD NECK
SOCKET WELD
BLIND
SLIP-ON
LAP JOINT
THREADED
SOCKET WELD
BLIND
SLIP-ON
LAP JOINT
THREADED
SCHEDULE
40
80
160
STD
XS
XXS
MATERIAL
CARBON STEEL
STAINLESS STEEL
SURFACE FORMS:
RF
FF
RTJ
CLASS
150 psi to 2500 psi
STANDARS
ASME B16.5

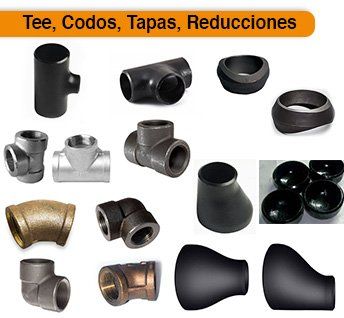

TEE, ELBOW, CAP, REDUCER, WELDOLET (Tee, Codos, Tapas, Reducciones)
Tee, Codos, Tapas, Reducciones
WELDING
MATERIAL
CARBON STEEL
CLASS
- TEE NORMAL
- TEE REDUCER
- ELL 45°
- ELL 90°
- CAP SEMIELIPTICO
- CAP TORIOSFERICO
- CONCENTRIC REDUCER
- ECCENTRIC REDUCER
SCHEDULE
- 40
- 80
- 160
- STD
- XS
- XXS
CLASS
150 psi to 2500 psi
STANDARS
ASME B16.9
BUSHING, THREADOLET, TEE, ELBOW, UNION, PLUG, SWAGE NIPPLE (Reducciones Tee, Codos, Uniones, Tapón, Botellas)
TEE, CODOS, UNIONES, TAPÓN, BOTELLAS
THREADED
CLASS
- 2000
- 3000
- 6000
MATERIAL
- CARBON STEEL
- STAINLESS STEEL
STANDARS
- A105
- SS316

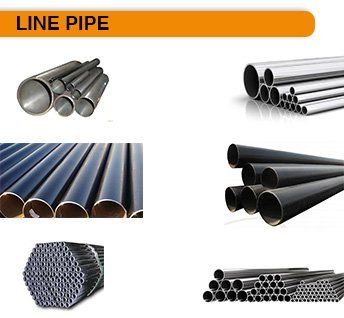

LINE PIPE (Tubería)
TUBERÍA
- WELDING
- THREADED
FORMS
- SEAMLESS
- WELD SEAM
STEEL GRADE
- GR, A
- GR, B
- GR, C
MATERIAL
- CARBON STEEL
- STAINLESS STEEL
SCHEDULE
- 40
- 80
- 160
- 10S
- 40S
- 80S
STANDARS
- ASTM A53
- ASTM A106
- ASTM A312
- API 5L

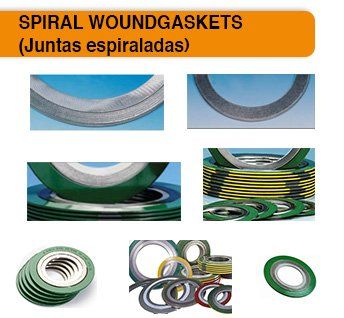

SPIRAL WOUNDGASKETS (Juntas espiraladas)
SPIRAL WOUNDGASKETS
STYLE W
sellado reforzado con más vueltas de metal
STYLE WI
elemento de sellado con anillo interior
STYLE CW
anillo centrado exterior macizo
STYLE CWI
anillo centrado exterior e interior macizo
SCHEDULE
150
300
900
1500
MATERIAL
CARBON STEEL
STAINLESS STEEL
STAINLESS STEEL
CLASS
250 psi
1000° C
Superficie de ajuste:
RF
FF
STANDARS
ASME B16.20

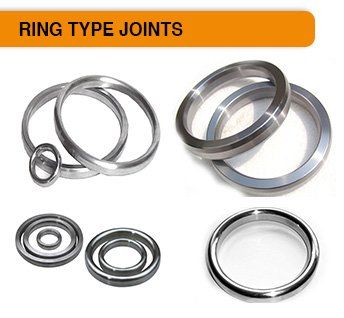

RING TYPE JOINTS
STYLE R – Octogonal
STYLE R – Oval
STYLER RX – Adaptación especial
STYLE – Para presiones extremas
CLASS
150 - 5000 bar
MATERIAL
Acero al carbono
Acero inoxidable
STANDARS
ASME B.16.20
Superficie de ajuste:
RTJ

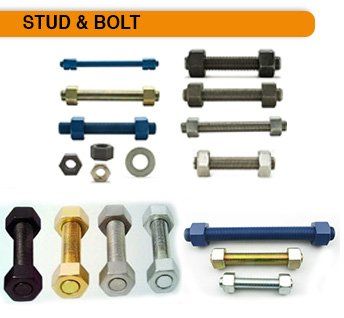

STUD & BOLT (Espárragos)
STUD & BOLT
COATING
FLUOROCARBON
ZINC YELLOW
CADMIUM WHITE
GALVANIZED
STEEL GRADE
GR, B7 – 2H
GR, B8M -8M
CLASS
LOW TEMPERATURE
HIGH TEMPERATURE
MATERIAL
ALLOY STEEL
STAINLESS STEEL
STANDARS
ASTM A193
ASTM A320

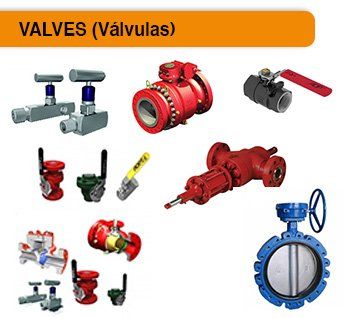

VALVES (Válvulas)
VALVES
FLOATING BALL
TRUNNION
GLOBE
GATE
CHECK
BUTTERFLY
NEEDLE
SURFACE FORMS:
RF
FF
RTJ
THREADED
MATERIAL
CARBON STEEL
STAINLESS STEEL
CLASS
ASME Class150 - 900
API 1500 and 5000 pressure classes.
